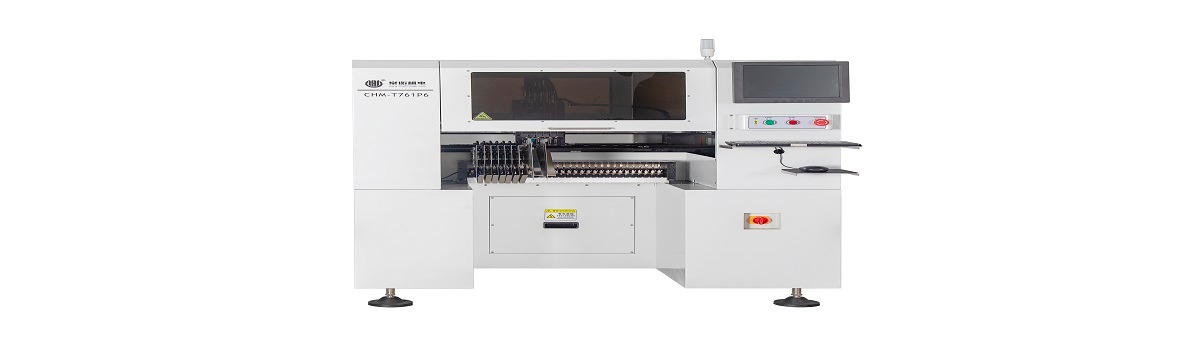

XPF-S/L multi-function machine

• Mounting speed: Rotating automatic replacement head: 0.144sec/25000cph

                        Single nozzle: 0.40sec/piece 9000cph

                       Dispensing automatic replacement head: 0.2sec/shot

• SMD range: Rotary automatic replacement head: 0402 (01005) ~ 20 x 20mm Height: MAX 3.0mm

                         Single nozzle: 1005 (0402) ~ 40x150 (40x40) mm Height: MAX 25.4mm

                         Dispensing automatic replacement head: equipped platform: Side1 side (MFU-30 OR fixed material station)

• Shelf support: L-100 (in 8mm strip conversion, MFU-30/front + rear fabric station)

                          S type -50 types (converted by 8mm strip, MFU-30/front station)

• PCB size: Max: L457XW356mm min: L50XW50mm thickness 0.3mm ~ 4.0mm

• Mounting accuracy: Small chip: ±0.05mm (3 sigma) cpk≥1.00

                            QFP component: ±0.04mm (3 sigma) cpk≥1.00

                            Single nozzle: small chip: ±0.04mm (3 sigma) cpk≥1.00

                            QFP component: ±0.03mm (3 sigma) cpk≥1.00

                            Dispensing automatic replacement head: Dispensing position accuracy: ±0.1mm (3sigma) cpk≥1.00

• Power supply: 3P/ 200V / 10KVA

• Air flow: 0.5MPa (5kgf/cm2), 46NI/min.

• Machine size: length 1515mm width: 1608mm height: 1420mm
